Have you ever struggled with a drawer that just doesn't slide the way it should? You know, that frustrating moment when you're trying to grab a spoon, but the drawer jams or wobbles?

It's a common issue, and often the culprit is poorly measured or installed drawer slides. But here's the good news: you can fix it! By learning how to measure kitchen drawer slides accurately, you can ensure your drawers glide smoothly every time.

In this guide, you'll discover simple steps to measure your drawer slides correctly. Imagine opening your kitchen drawers effortlessly, enjoying the peace of a smoothly functioning kitchen. Plus, correctly measured slides can extend the life of your drawers, saving you time and money in the long run. So, if you're ready to transform your kitchen experience and enjoy the convenience of perfectly fitted drawers, keep reading. Your kitchen could be just a few measurements away from perfection!

Tools Needed

Measuring kitchen drawer slides needs the right tools. Using proper tools helps get accurate measurements.

Here are the main tools you need before starting to measure your drawer slides.

Tape Measure

A tape measure is the most important tool for measuring drawer slides. It helps you measure length and width precisely.

Choose a tape measure with clear markings in inches and centimeters for easy reading.

Screwdriver

A screwdriver helps remove the drawer from the cabinet safely. It also loosens screws on the slides if needed.

Make sure you have the right type of screwdriver, usually Phillips or flathead.

Pencil Or Marker

You need a pencil or marker to mark measurements. This makes it easier to note down slide lengths.

Use a pencil for temporary marks that erase easily. Use a marker for permanent notes.

Level Tool

A level tool checks if the drawer slides are straight. Straight slides help the drawer open and close smoothly.

You can use a small spirit level or a laser level for this task.

Notepad

A notepad keeps all your measurements and notes in one place. This helps avoid confusion later.

Write down the length, width, and type of drawer slides you measure.

Types Of Drawer Slides

Kitchen drawer slides come in several types. Each type fits different drawer styles and weights.

Knowing the types helps you pick the right slide for your kitchen drawers.

Side-mounted Drawer Slides

Side-mounted slides attach to the drawer sides. They are visible when the drawer is open.

These slides hold heavy drawers well and offer smooth movement.

Under-mounted Drawer Slides

Under-mounted slides fix under the drawer. They stay hidden when the drawer opens.

These slides give a clean look and are easy to clean around.

Center-mounted Drawer Slides

Center-mounted slides attach under the drawer center. They show less than side-mounted slides.

• Fit light to medium weight drawers
• Can be metal or plastic
• Simple to install

Wooden Drawer Slides

Wooden slides use wooden runners inside the cabinet. They suit traditional or antique furniture.

Measure Drawer Width

Measuring the drawer width helps you find the right size for drawer slides. Accurate measurement ensures smooth opening and closing.

Use a tape measure and a steady hand. Measure inside the drawer box, not the front panel.

Tools Needed For Measuring

Having the right tools makes measuring easier and more accurate. Use simple tools you likely already have.

• Tape measure or ruler
• Pencil and paper to note measurements
• Flashlight for better visibility inside the drawer

How To Measure Drawer Width

Open the drawer fully. Measure the distance between the inside walls of the drawer box.

1. Place the tape measure inside the drawer box.
2. Measure from the left inside wall to the right inside wall.
3. Write down the exact measurement in inches or centimeters.

Common Drawer Width Sizes

Drawer Type	Typical Width (inches)
Kitchen Cabinet Drawer	12 to 24
Bathroom Vanity Drawer	10 to 18
Office Desk Drawer	14 to 22

Tips For Accurate Measurement

Measure Drawer Depth

Measuring drawer depth is key to choosing the right drawer slides. It helps ensure smooth movement and proper fit.

Use a tape measure to get the exact inside depth of your drawer box. This measurement guides your slide choice.

Prepare Your Tools

Gather a tape measure or ruler. Make sure it can measure in inches or centimeters.

Clear out the drawer to avoid obstacles. This helps get an accurate measurement.

Measure Inside Drawer Depth

Open the drawer fully and place the tape measure inside. Measure from the front inside edge to the back inside edge.

Record the number carefully. This is the drawer’s inside depth, which is important for slide length.

Check For Obstructions

Look for screws, brackets, or other parts inside the drawer. These can affect the slide installation.

Measure around these parts if needed. Make sure slides will fit without hitting obstacles.

Consider Slide Length Options

Drawer slides usually come in standard lengths. Match the slide length to your drawer depth.

• Choose slides slightly shorter than the drawer depth
• Allow space for smooth slide movement
• Check manufacturer recommendations for best fit

Measure Drawer Slide Length

Measuring the length of kitchen drawer slides helps you find the right replacement. Correct measurements ensure smooth operation and proper fit.

Drawer slides come in different sizes, so knowing how to measure them saves time and effort.

Remove The Drawer From The Cabinet

Start by pulling the drawer out fully from the cabinet. If needed, lift the drawer slightly to release the slides.

Removing the drawer gives you clear access to the slides for accurate measurement.

Measure The Slide Length On The Drawer

Look at the metal slide attached to the side of the drawer. Use a tape measure to find the length from the front edge to the back end.

Measure only the part of the slide fixed to the drawer, not the part inside the cabinet.

• Place the tape at the front of the slide.
• Extend it to the back end of the slide.
• Note the measurement in inches or centimeters.

Measure The Slide Length Inside The Cabinet

Check the slide mounted inside the cabinet. Measure from the front edge to the back end just like on the drawer slide.

Both the drawer and cabinet slides should have similar lengths for proper function.

• Align the tape with the front edge of the cabinet slide.
• Measure to the rear end of the slide.
• Record the measurement for comparison.

Measure The Full Extension Length

Some slides extend fully beyond the cabinet frame. Measure how far the slide extends when fully pulled out.

This helps to know the maximum drawer travel and if the slide fits your kitchen space.

• Pull the slide out completely.
• Measure from the back of the cabinet to the front of the extended slide.
• Use this length to choose slides with proper extension.

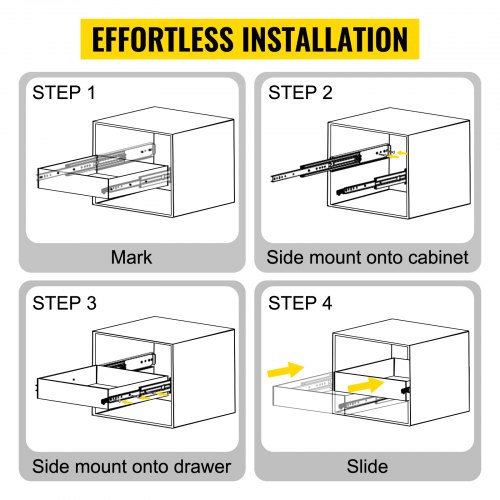

Credit: www.vevor.com

Check Slide Mounting Type

Measuring kitchen drawer slides starts with knowing how they mount. The mounting type affects how you measure.

There are three common types of drawer slide mounts. Each type fits differently inside the cabinet.

Side Mount

Side mount slides attach to the sides of the drawer and cabinet. They are visible when the drawer is open.

To measure side mount slides, measure the length of the metal rail on the side of the drawer.

• Open the drawer fully.
• Measure the slide length from front to back.
• Measure the width between the slides inside the cabinet.

Under Mount

Under mount slides are fixed under the drawer. They are hidden when the drawer is open.

Measure under mount slides by checking the length of the slide parts under the drawer.

• Pull out the drawer fully.
• Measure the slide length from front to back underneath.
• Note the height of the slides inside the cabinet.

Center Mount

Center mount slides attach under the center of the drawer bottom. You usually see them when the drawer is open.

Measure center mount slides by measuring the length of the single slide in the drawer center.

• Open the drawer completely.
• Measure the length of the slide along the drawer bottom center.
• Check the distance between the slide and drawer sides.

Calculate Slide Clearance

Measuring kitchen drawer slides is important for smooth operation. Slide clearance affects how easily the drawer opens and closes.

Clearance is the small gap between the drawer and cabinet sides. This gap lets the slide move without rubbing.

Start by measuring the drawer's width inside the front edges. Use a tape measure for accuracy.

Write down the measurement in inches or millimeters for later use.

Measure Cabinet Opening Width

Next, measure the cabinet opening width where the drawer will fit. Measure from left to right inside the cabinet.

Check the opening at the front and back to confirm it is even.

Calculate Slide Clearance Gap

Subtract the drawer width from the cabinet opening width. This gives the total clearance space.

Divide this number by two. This shows the clearance needed on each side of the drawer.

• Total Clearance = Cabinet Opening Width - Drawer Width
• Slide Clearance per Side = Total Clearance ÷ 2

Check Slide Thickness

Look at the slide's thickness to ensure it fits the clearance gap. Slides usually need about 1/2 inch clearance total.

If clearance is too small, the drawer may stick. If too large, the drawer may wobble.

Adjust For Smooth Operation

Use the clearance measurement to pick the right slide size. Make sure slides fit without forcing the drawer.

Test the drawer movement after installation to confirm smooth sliding.

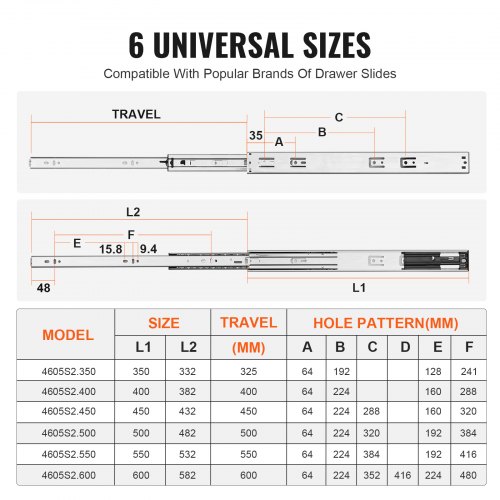

Credit: www.vevor.com

Tips For Accurate Measurements

Measuring kitchen drawer slides correctly ensures smooth operation and a perfect fit. Accurate measurements prevent costly mistakes and save time during installation.

Use the right tools and methods to get exact measurements. Follow these tips to measure drawer slides with confidence.

Gather The Necessary Tools

Before measuring, prepare a tape measure, pencil, and paper. A flashlight helps see inside dark drawers. Having these tools ready makes the process easier and faster.

Measure The Drawer Length

Pull the drawer out fully. Measure the length from the front edge to the back inside wall. Use the tape measure along the bottom where the slide will attach.

Check The Slide Type And Width

Identify if the slide is side-mount, under-mount, or center-mount. Measure the width of the slide and the drawer opening to choose the right replacement slide size.

Measure The Cabinet Opening

Measure the width and height inside the cabinet where the drawer slides will mount. These measurements help confirm that the slides fit correctly inside the cabinet.

• Measure the cabinet width at the top, middle, and bottom
• Measure the height between the bottom and top inside surfaces
• Record all dimensions to compare with slide specifications

Double-check Measurements For Accuracy

Common Measurement Mistakes

Measuring kitchen drawer slides correctly is very important. Mistakes can cause the slides to not fit well.

Below are common errors people make when measuring drawer slides. Avoid these to get the right size.

Not Measuring The Drawer Length Properly

Many people only measure the drawer front. This leads to wrong slide length.

Measure the full depth of the drawer from front to back. This gives the exact slide length needed.

Ignoring The Slide Mounting Type

There are side-mount, under-mount, and center-mount slides. Each needs different space and sizes.

Check what type your drawer uses. Measuring without this can cause wrong slide selection.

Forgetting To Measure The Cabinet Opening

Some only measure the drawer itself. The cabinet space matters too for slide fit.

Measure the width, height, and depth inside the cabinet opening. This avoids space problems.

Using Inaccurate Tools

Using a worn-out tape measure or ruler causes wrong sizes. Small errors add up.

Use a good quality, clear tape measure. Double-check measurements to be sure.

Not Accounting For Slide Extension

Drawer slides extend beyond the cabinet when opened. Not considering this causes fitting issues.

Know the slide extension length and check if your space allows full slide movement.

Measuring Only One Side

Drawers may not be perfectly square or even on both sides. Measuring one side only is risky.

Measure both left and right sides of the drawer and cabinet to ensure accuracy.

Credit: www.vevor.com

Frequently Asked Questions

How Do I Measure Kitchen Drawer Slides Length?

Measure the full length of the drawer slide from front to back. Use a tape measure for accuracy. Include the slide’s mounting brackets for precise fit.

What Tools Are Needed To Measure Drawer Slides?

You need a tape measure or ruler and a pencil. A level may help ensure straight alignment. These tools ensure accurate and easy measurements.

Should I Measure Inside Or Outside The Drawer?

Measure the drawer slide inside the cabinet. This gives the exact space available. External measurements may cause fitting issues.

How To Measure Drawer Slide Thickness Correctly?

Use a caliper or tape measure to check thickness. Measure at the thickest part of the slide. This helps select the right drawer runners.

Conclusion

Measuring kitchen drawer slides is simple with the right steps. Always measure the length, width, and height carefully. Double-check your numbers to avoid mistakes. Correct measurements help ensure smooth drawer operation. Take your time and use a tape measure. This way, you get the best fit for your kitchen drawers.

Now, you can install or replace slides confidently. A little care makes a big difference. Happy measuring!
